Grade 100 Weld On Lifting Point

Weld-on Lifting Lugs

FOR LIFTING AND LASHING

As a high strength attachment point for both lifting and lashing, Weld-on Lugs offer a permanent solution. Applications for this product are in all sectors of mining, rail and road transportation, construction, marine and offshore exploration.

Capacities Available - WLL in tonnes
1.5, 2.5, 4, 6.7, 10 & 16.

Features:

• The Working Load Limit remains constant at any angle of lift.
• Welding the lug assembly into the desired position is easily achieved with weld height lugs under the weld block.
• The lug and weld block are made using Grade 100 Alloy Steel, then quenched and tempered.
• All B-Tech Alloy V Weld-on Lugs are magnetically crack inspected (MPI) after manufacture.
• Lifting lug is finished in powder coated baked enamel for greater corrosion resistance.

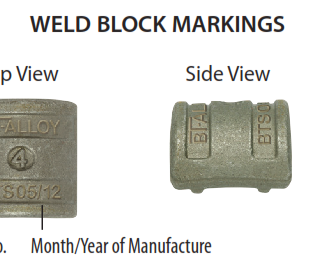

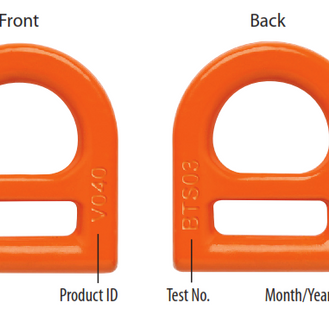

• The lifting lug and weld block are marked with BT-ALLOY V, WLL (Working Load Limit) and the month and year of manufacture along with an individual test number for easy tracing and identification.
• Designed to lay flat when not in use.
• Detailed welding instructions are supplied with each set.
• Test Certificate available.
